Glare free downlight for indoor use with symmetrical or asymmetrical reflector

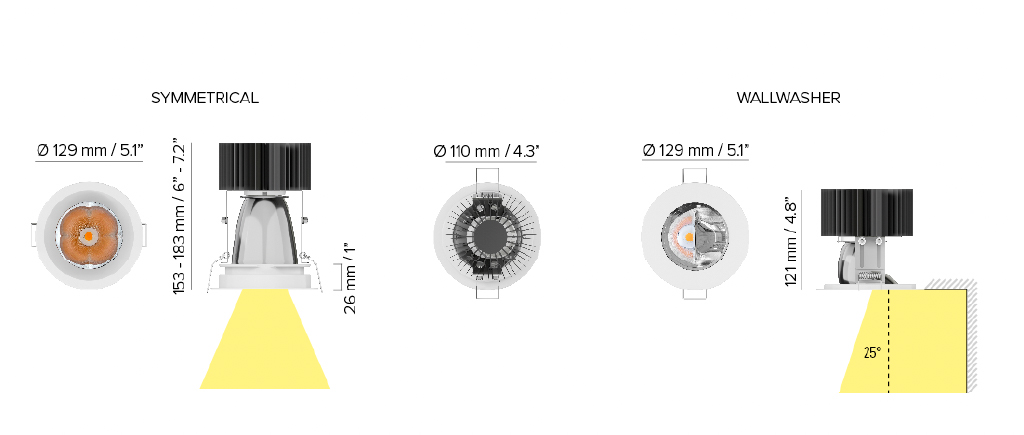

- Diameter 129 mm
- Height symmetrical model 153 or 183 mm, height asymmetrical model 121 mm
- Thanks to the design of the reflector, the luminaire is totally glare free
- Available in two models: symmetrical reflector 30° (UGR < 10), 50° (UGR < 19) or asymmetrical reflector (wallwasher + 25°)
- The asymmetrical model delivers homogenous light on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
- The symmetrical model 30° or 50° concentrates 90% of the light within the aperture, delivering homogenous light on the floor with no “corona effect” or visible double beam spreads
- Available in colour temperatures of 2700K CRI93, 3000K CRI93 and 4000K CRI93
- Wattage 23W at 700 mA or 30W at 900 mA
- Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
- IP20
