DOT 45 / DOT 45 AD

Compact downlight fixed or adjustable, with symmetrical or asymmetrical light distribution

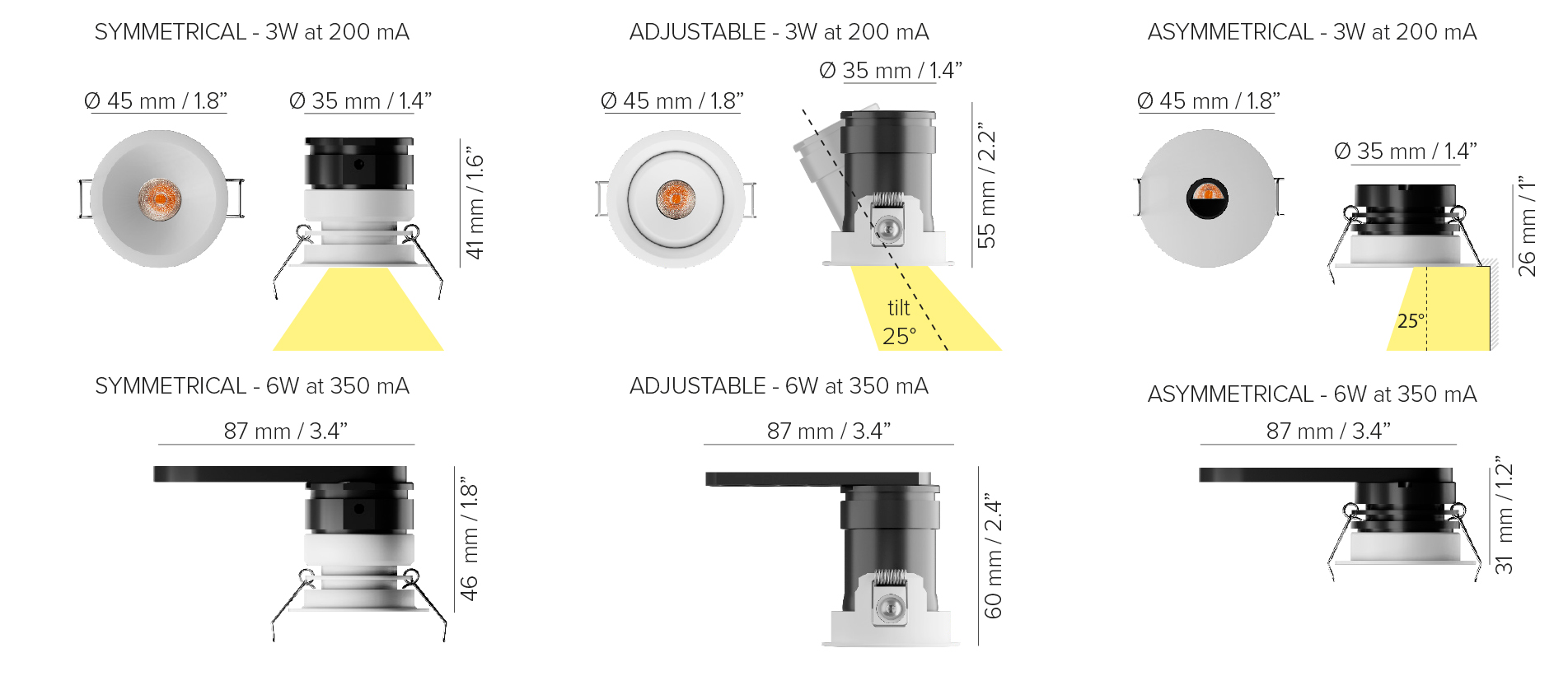

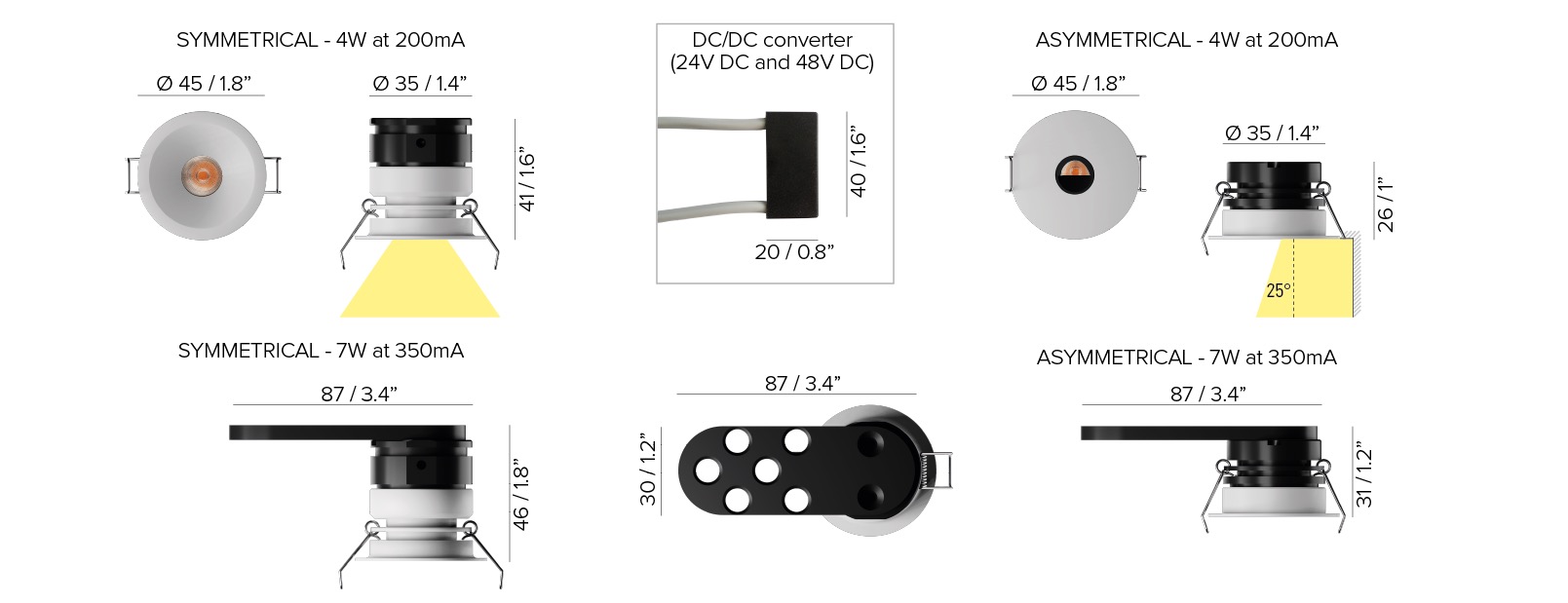

  • Diameter 45/47 mm, height 31/46/60 mm
  • The light aperture has a diameter of only 13 mm
  • Thanks to the design of the reflector, the luminaire is glare free

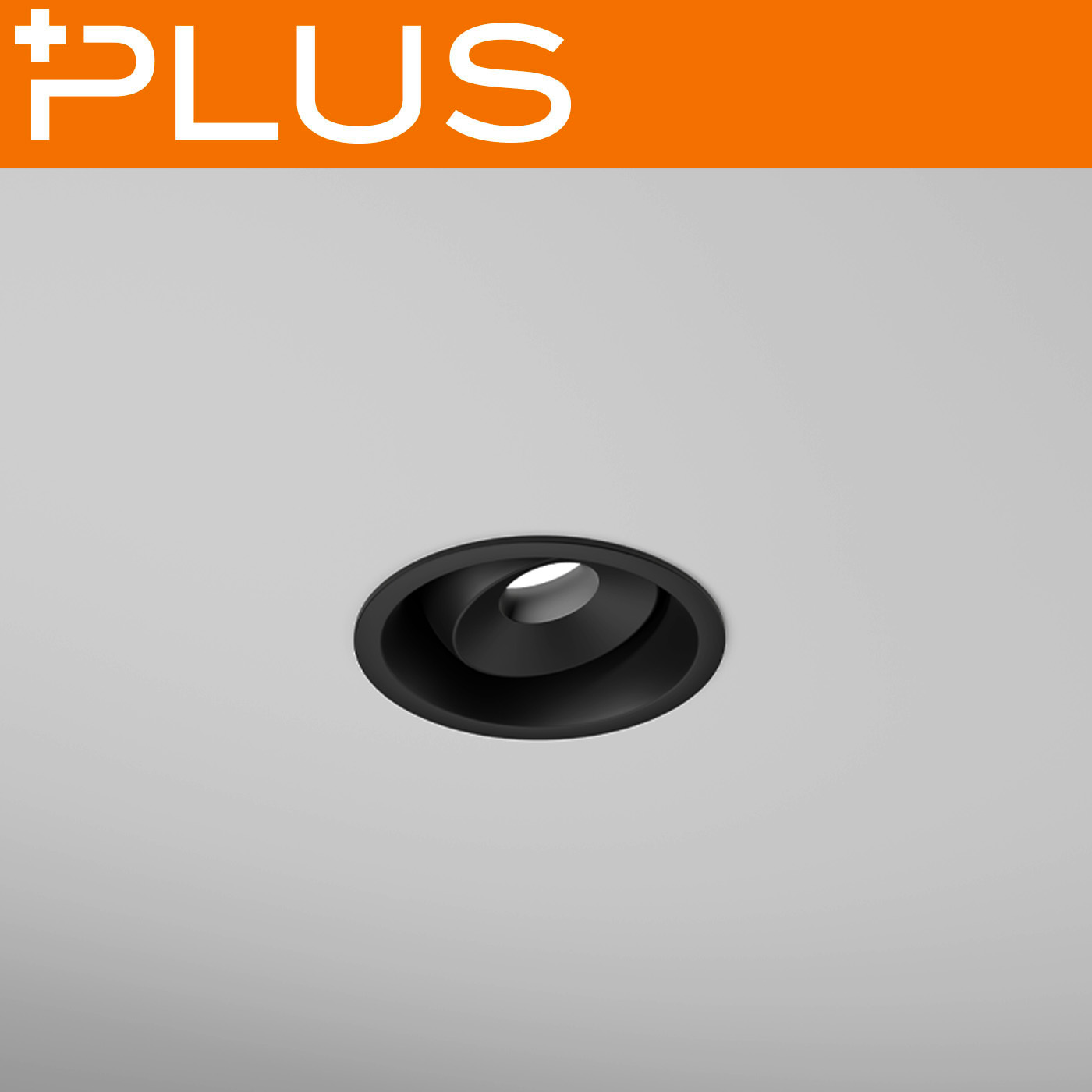

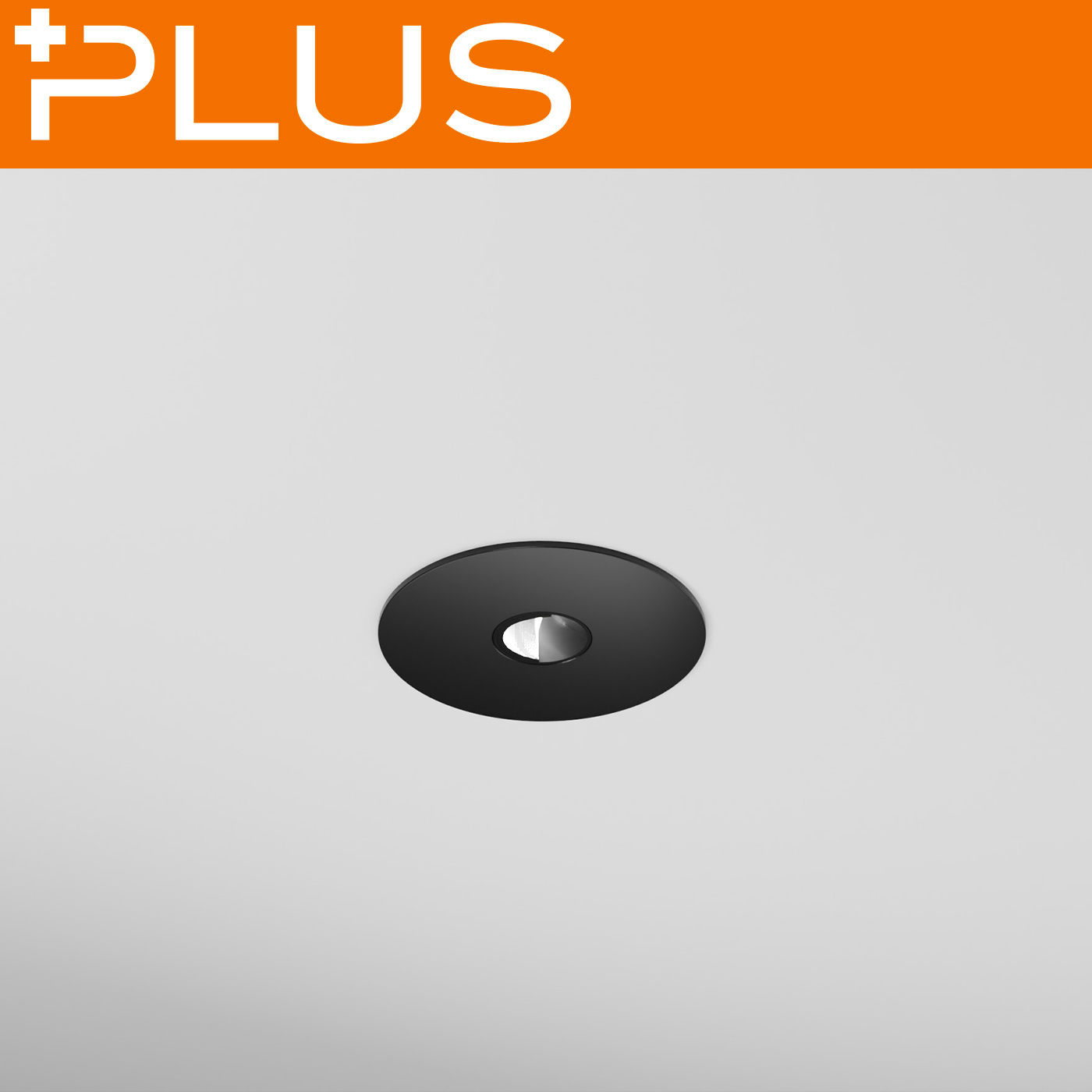

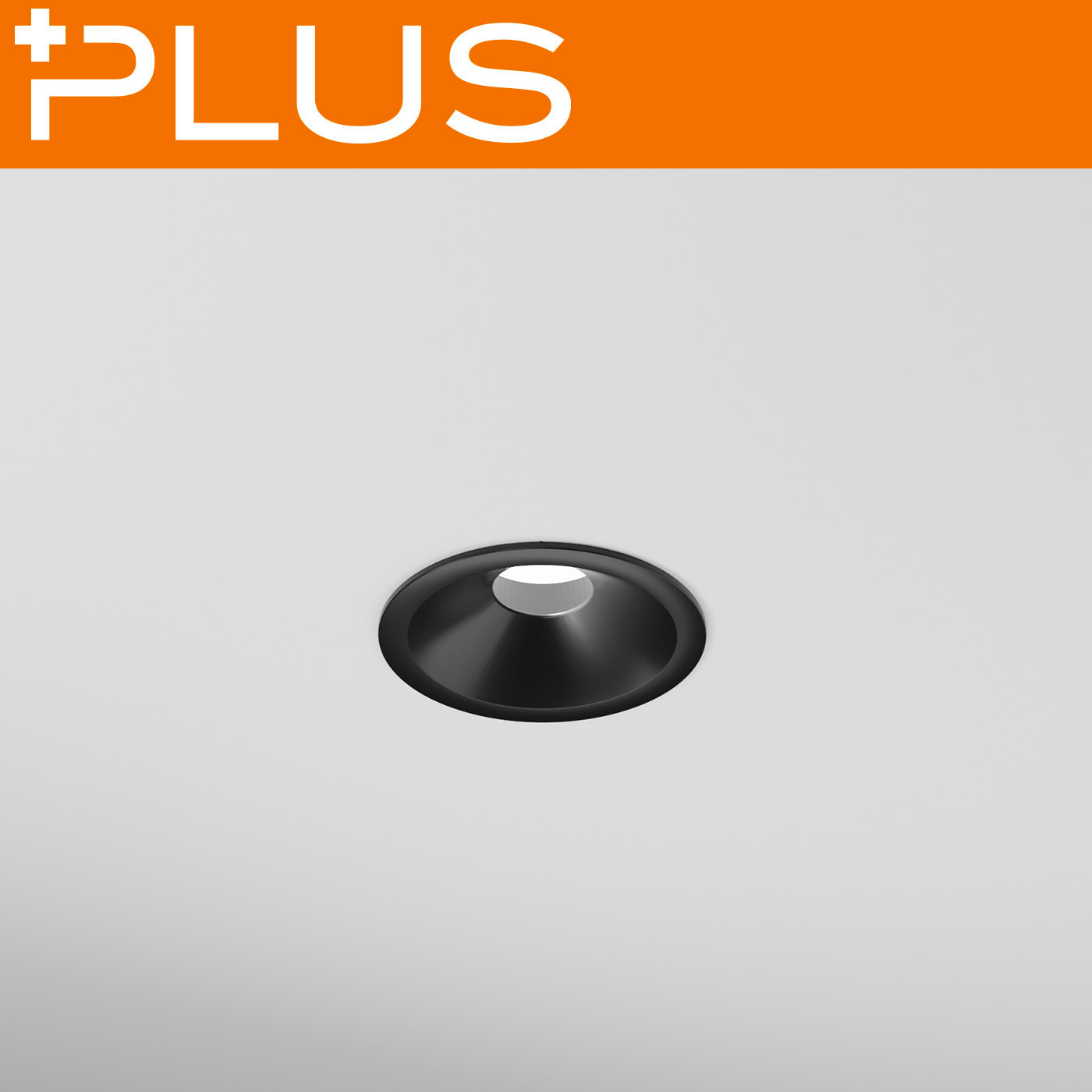

  • Available in three models: symmetrical reflector 16°/36°/55° fixed or adjustable and asymmetrical reflector (25° + wallwasher)

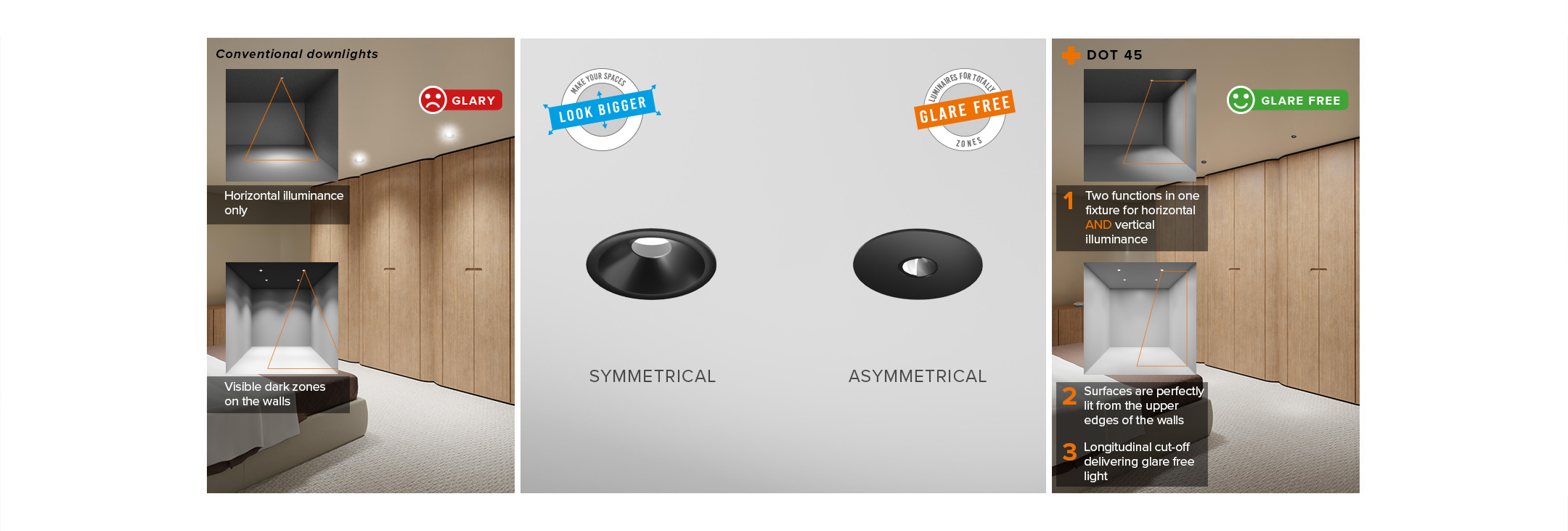

  • The asymmetrical model delivers 25° on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
  • Available with color temperatures of 2700K CRI93, 3000K CRI93 or 4000K CRI93
  • Wattage: 4W at 24V DC and 3W at 200mA or 7W at 24V DC and 6W at 350mA. 24V DC: Min / max operating voltage: 20V – 30V
  • Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • Asymmetrical: IP30. Symmetrical: IP40 or IP65
