DOT IN LINE

Invisible downlight for seamless integration with architecture

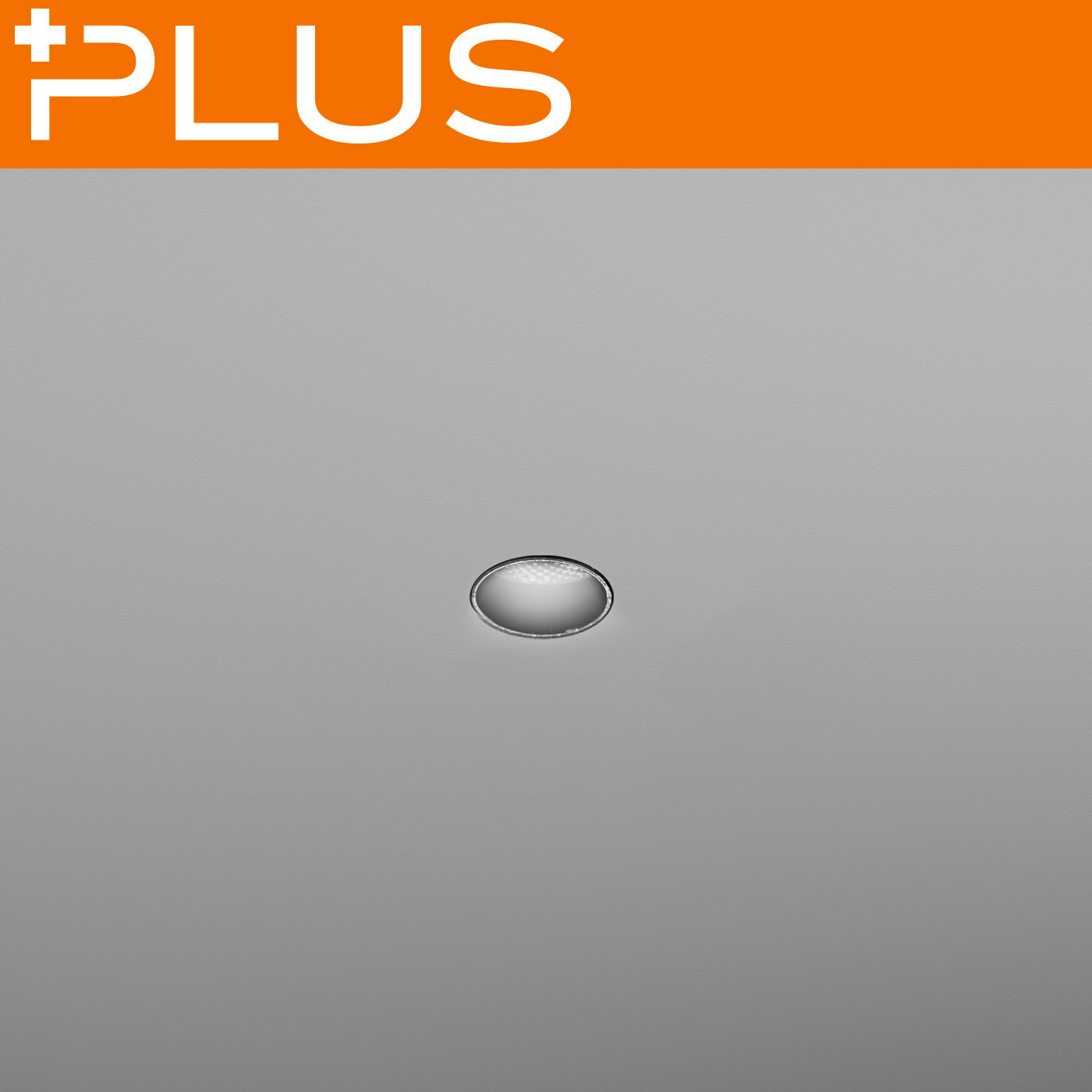

  • An invisible “dot” of only 13 mm of diameter hiding a powerful lightweight downlight
  • The luminaire can be installed into different materials such as marble, stone, wood, metal, acoustic ceiling, disapearing into the architecture
  • Installation as a single luminaire or in a system with one, two, three, five or more apertures
  • Thanks to the design of the reflector, the luminaire is totally glare free (UGR < 19)
  • Available with a 40° optic that concentrates 90% of the light within the aperture, delivering homogenous light on the floor with no “corona effect” or visible double beam spreads
  • Available with color temperature 4000K CRI93, 3000K CRI93 and 2700K CRI93

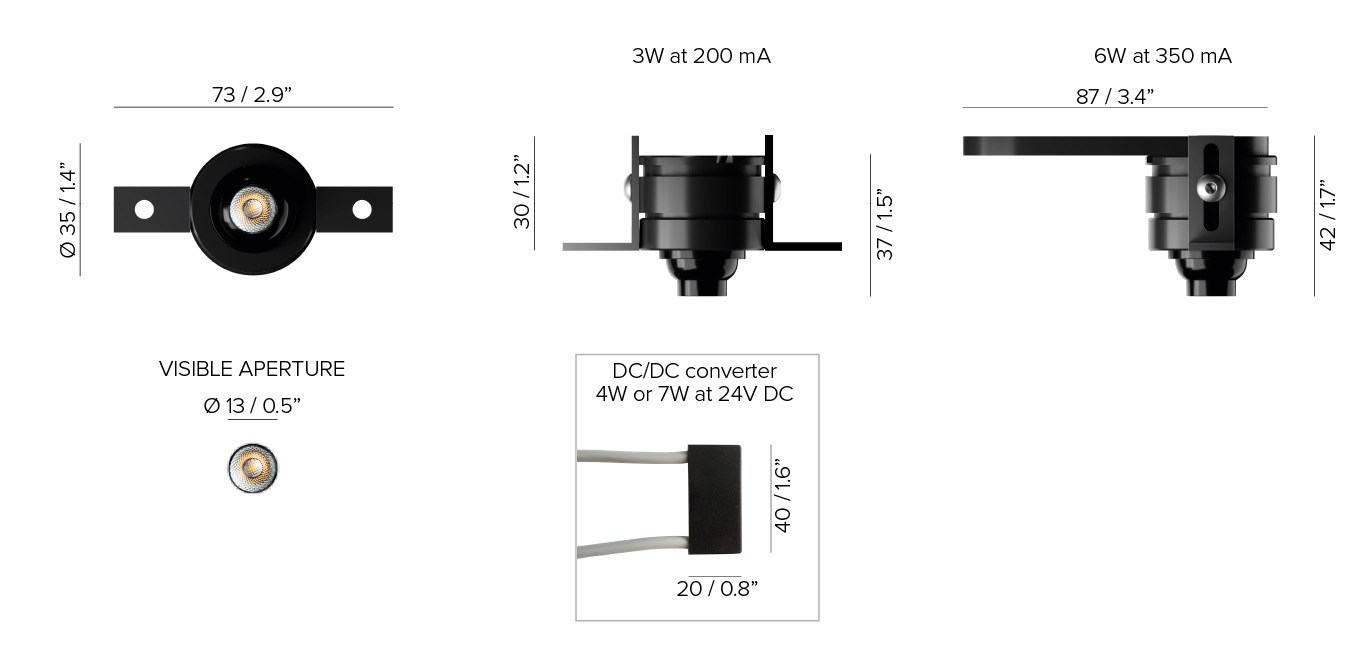

  • Wattage: 4W or 7W at 24V DC
  • Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • IP40 or IP65
