Invisible but powerful downlight for seamless integration with architecture

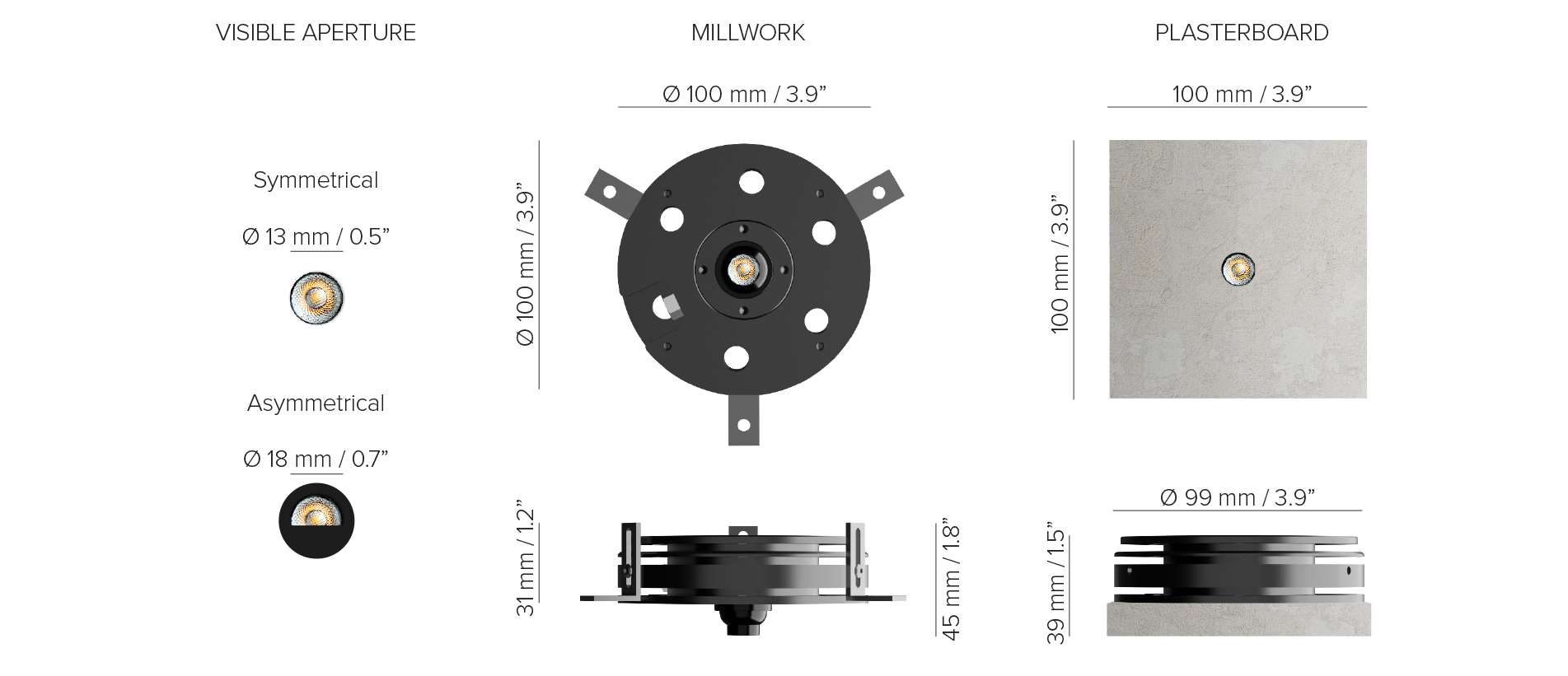

- An invisible “dot” of only 13mm of diameter hiding a powerful downlight
- The luminaire can be installed into different materials such as plasterboard, marble, stone, wood, metal, acoustic ceiling, disappearing into the architecture
- Installation as a single luminaire or in a system with one, two, three, five or more apertures
- Thanks to the design of the reflector, the luminaire is totally glare free (UGR < 19)
- Available in two models: symmetrical reflector 20° or 40° that concentrates 90% of the light within the aperture, delivering homogenous light on the floor with no “corona effect” meaning no double visible beams, or asymmetrical reflector (wallwasher + 25°)
- The asymmetrical model delivers 25° on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
- Available with color temperature: 2200K CRI90, 2700K CRI93, 3000K CRI93 or 4000K CRI93
- Wattage: 10W at 24V DC
- Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
- IP30, IP40 or IP65
