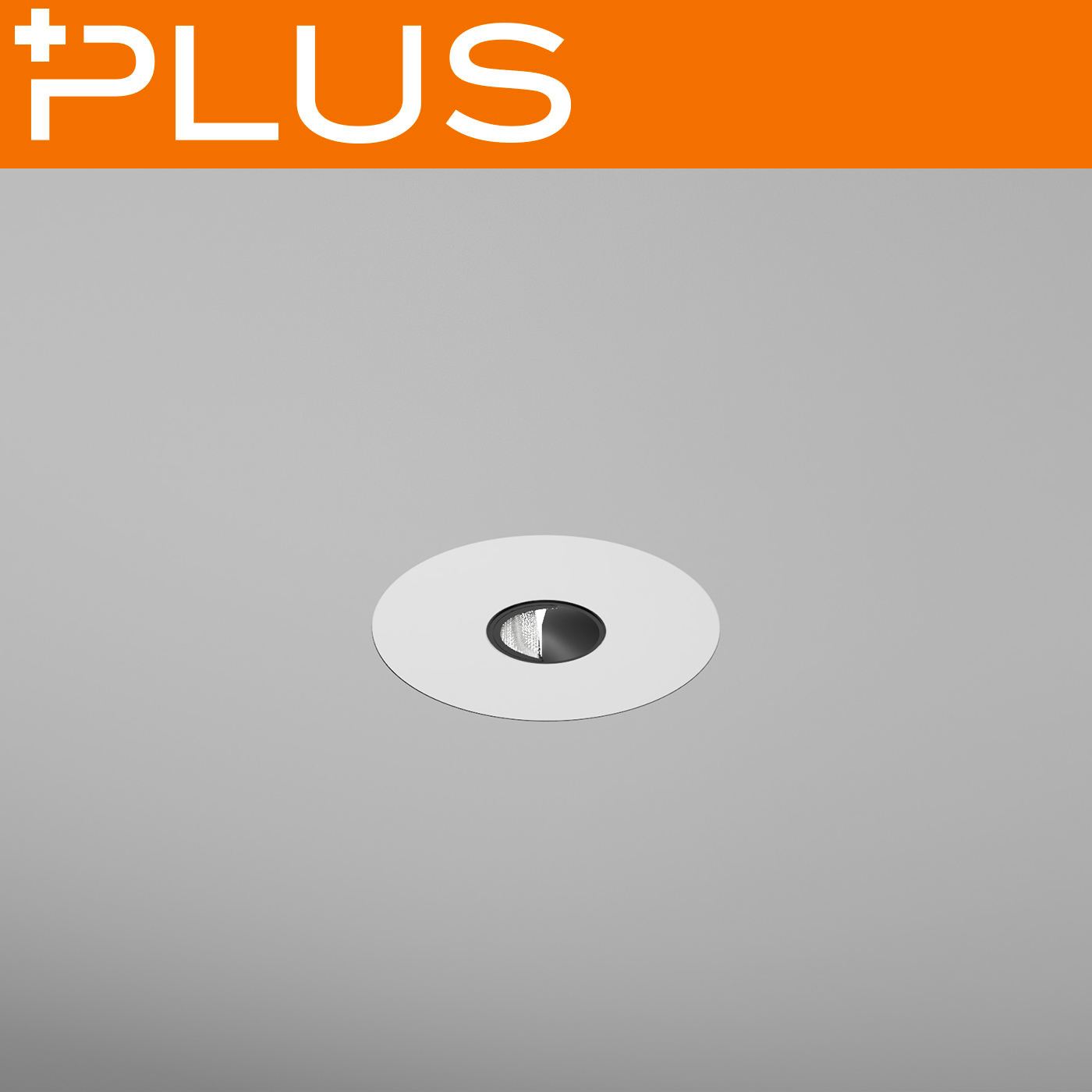

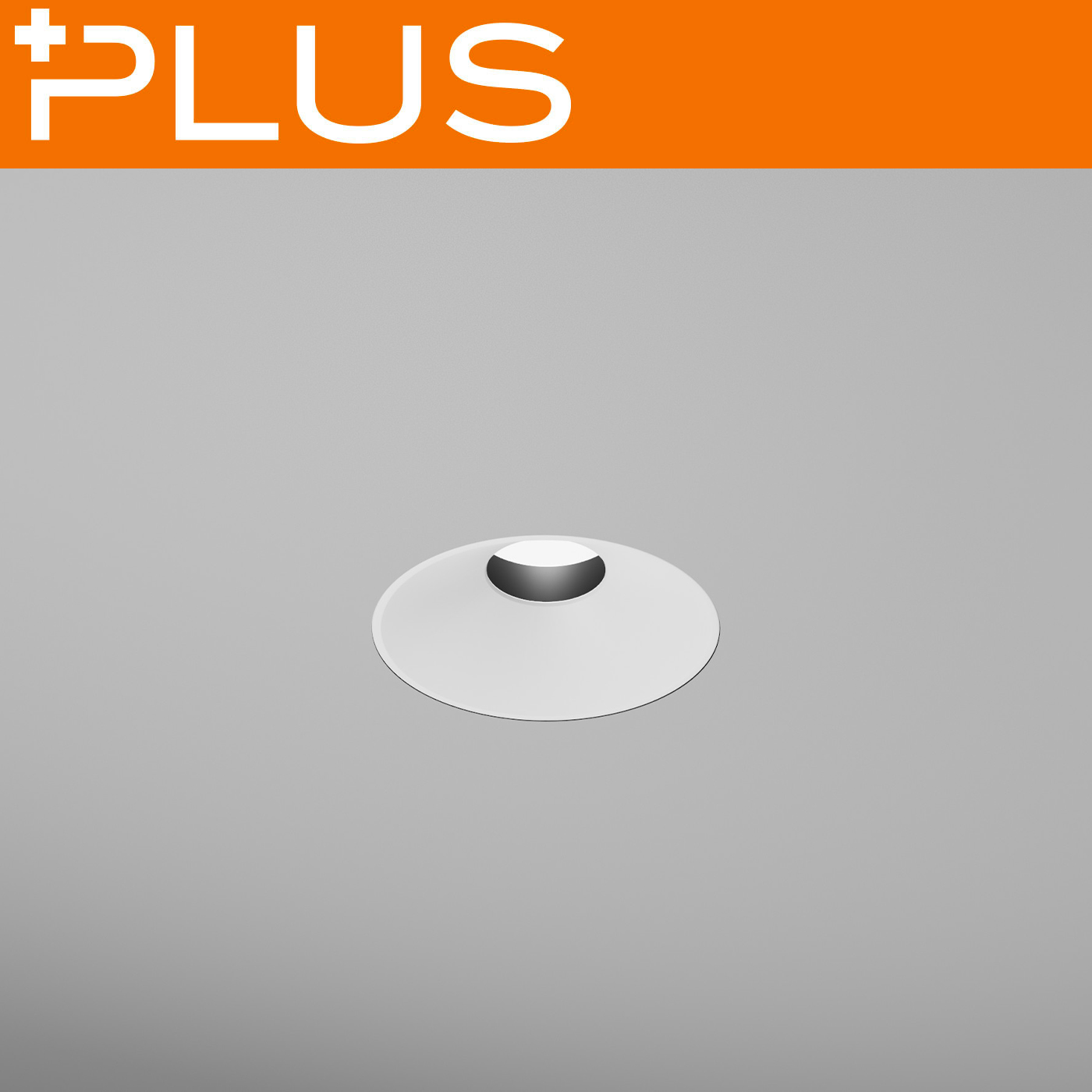

Glare free trimless downlight with symmetrical or asymmetrical reflector for indoor and outdoor use

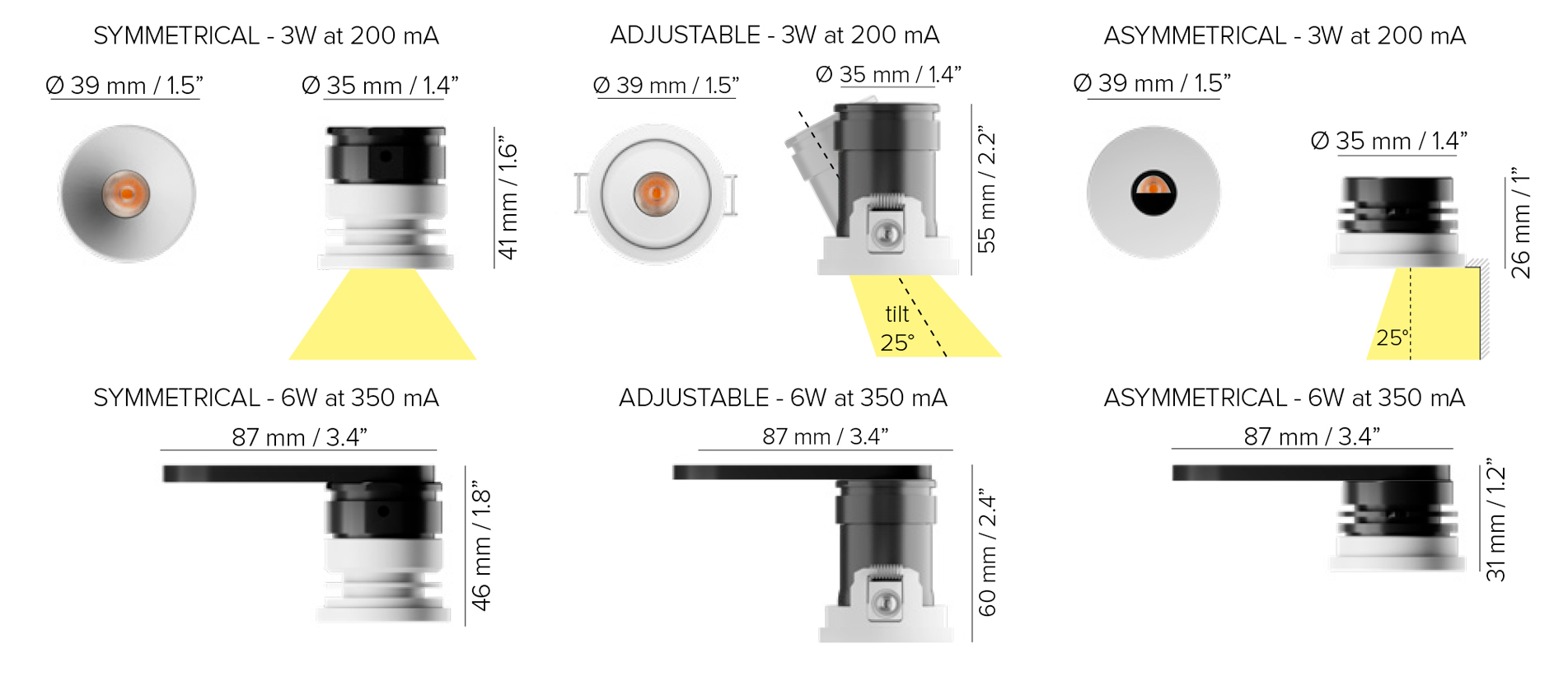

- Diameter 39 mm, height 41/46/60 mm
- The light aperture has a diameter of only 13 mm
- Mounting in plasterboard using mounting frame to be installed from below the ceiling or mounting in wood or composite materials using mounting frame to be installed from above the ceiling

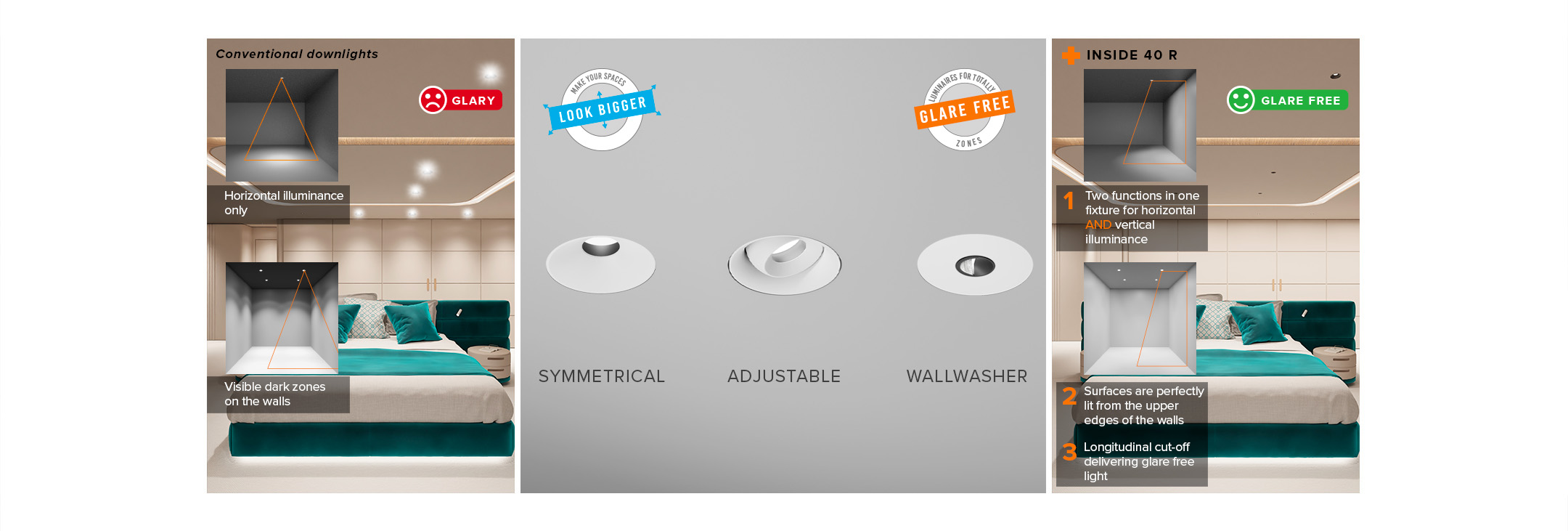

- Thanks to the design of the reflector, the luminaire is totally glare free
- Available in three models: symmetrical reflector 16°,36°,55°,15°x45° fixed or adjustable and asymmetrical reflector (25° + wallwasher)
- The asymmetrical model delivers 25° on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
- Available with color temperatures: 2200K CRI90, 2700K CRI93, 3000K CRI93 or 4000K CRI93
- Wattage: 4W at 24V DC and 3W at 200mA or 7W at 24V DC and 6W at 350mA. 24V DC (min / max operating voltage: 20V – 30V)
- Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
- Asymmetrical: IP30. Symmetrical: IP40 or IP65
