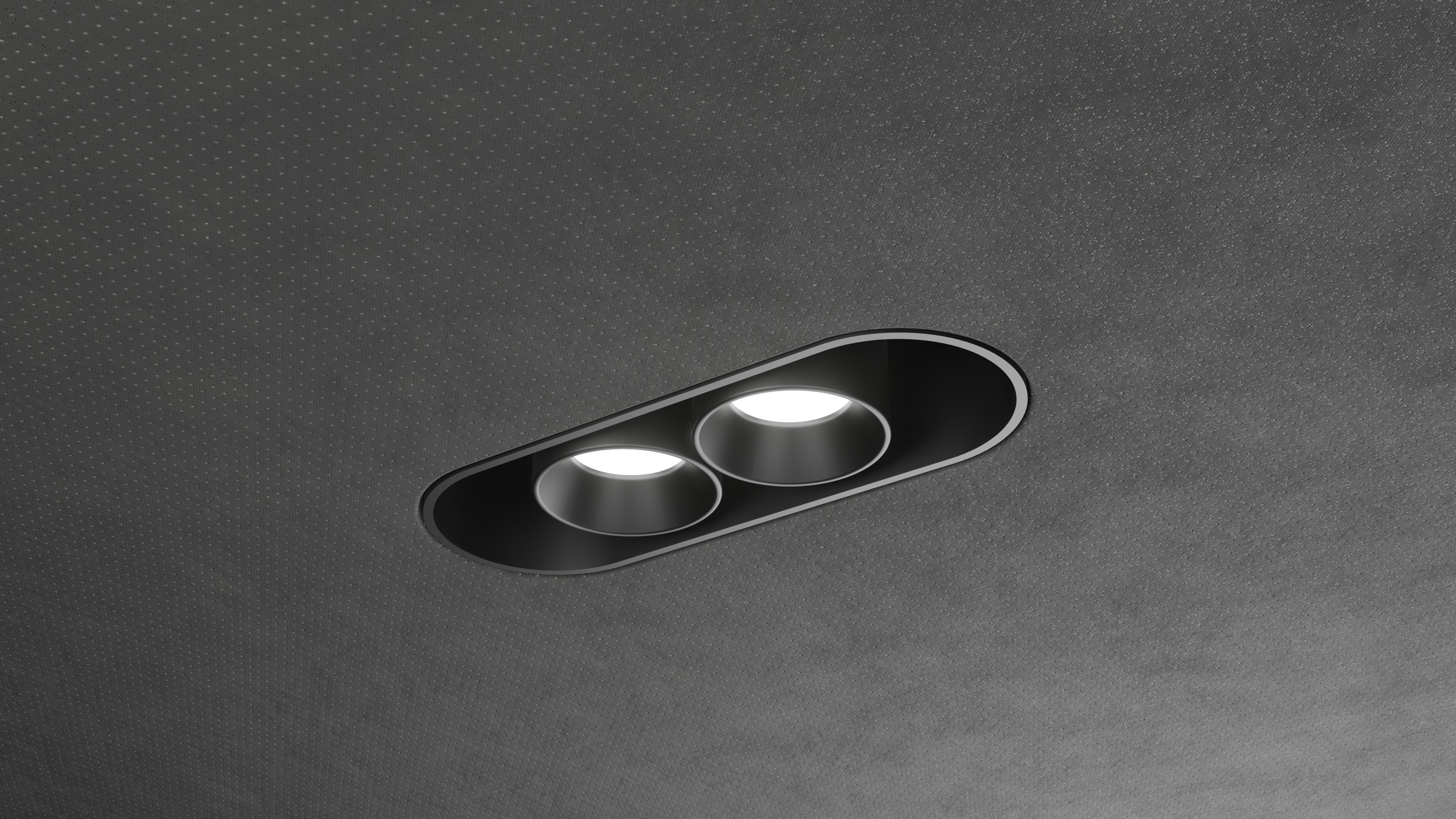

NICOLE

Innovative trimless downlight with symmetrical reflector or asymmetrical reflector specifically designed for corridors

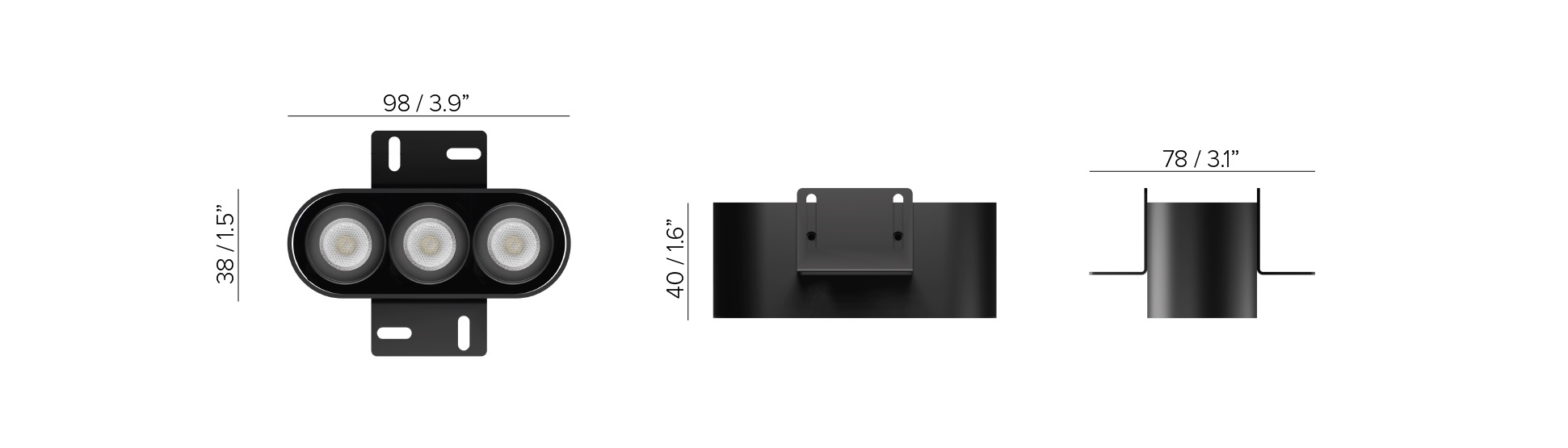

  • Width 98 mm, height 50 mm

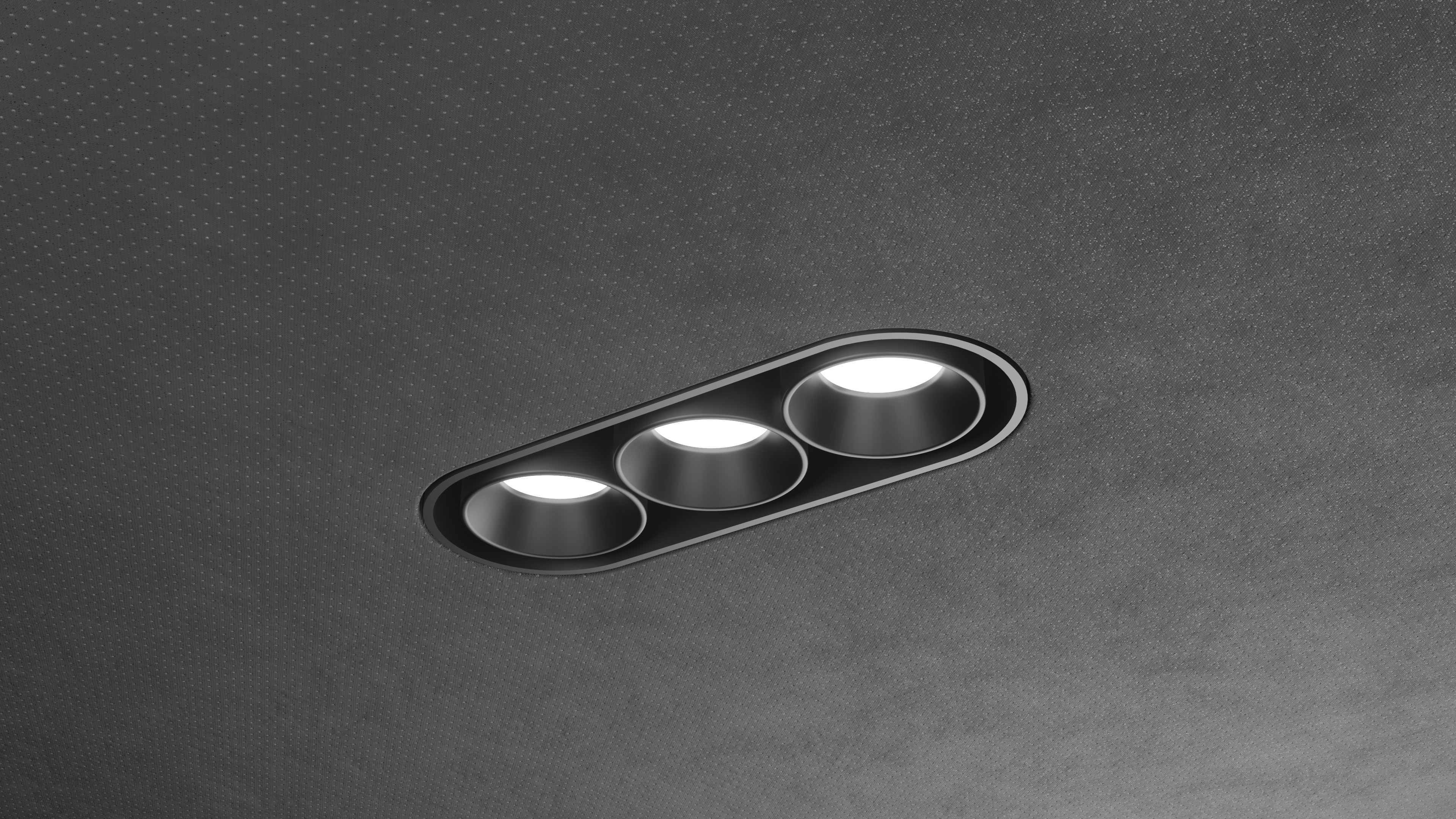

  • Available with two or three lamp sources and in two models: for plasterboard using mounting frame to be installed from below or for wood, stone or composite materials mounting the fixture from above the ceiling

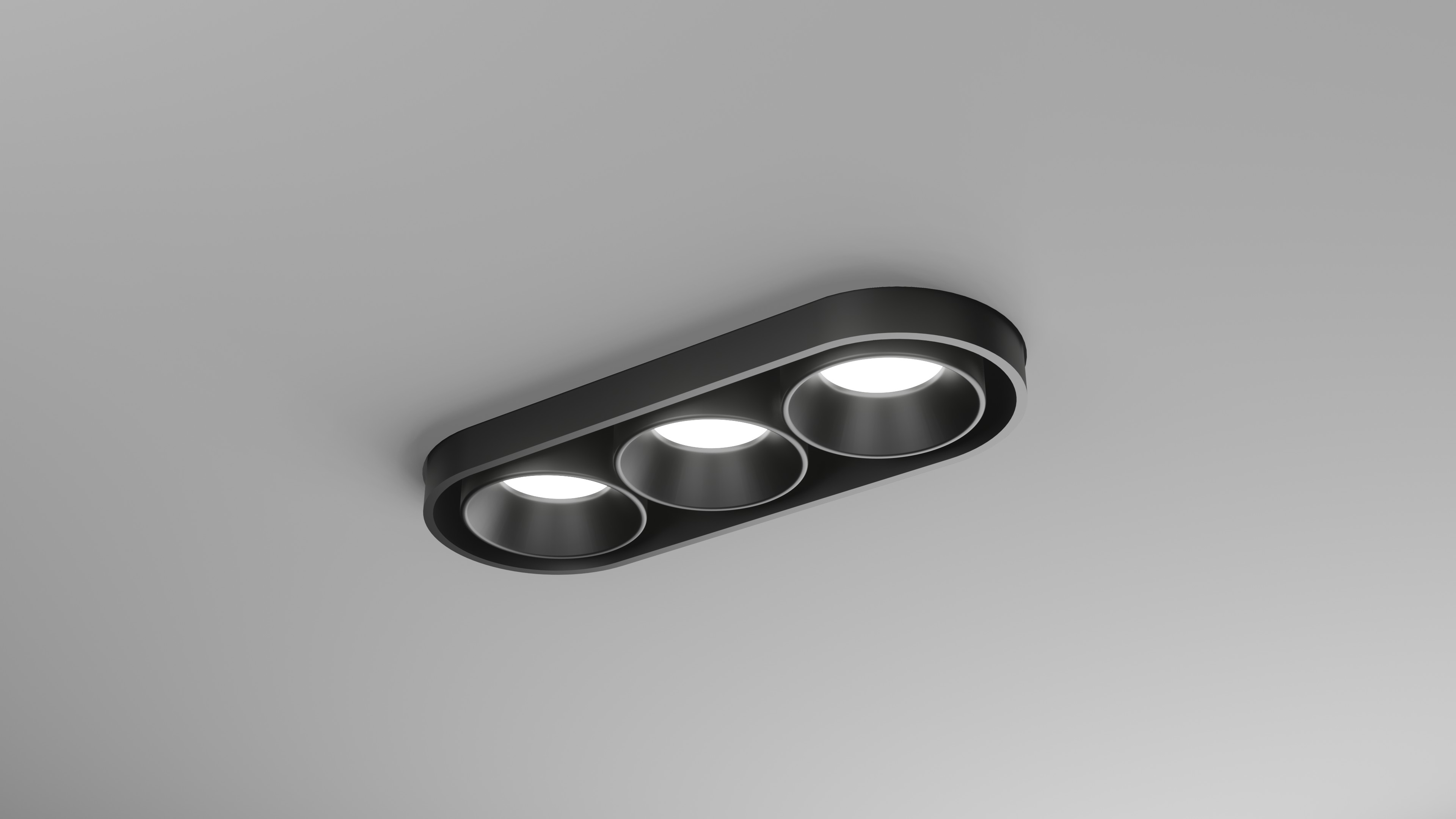

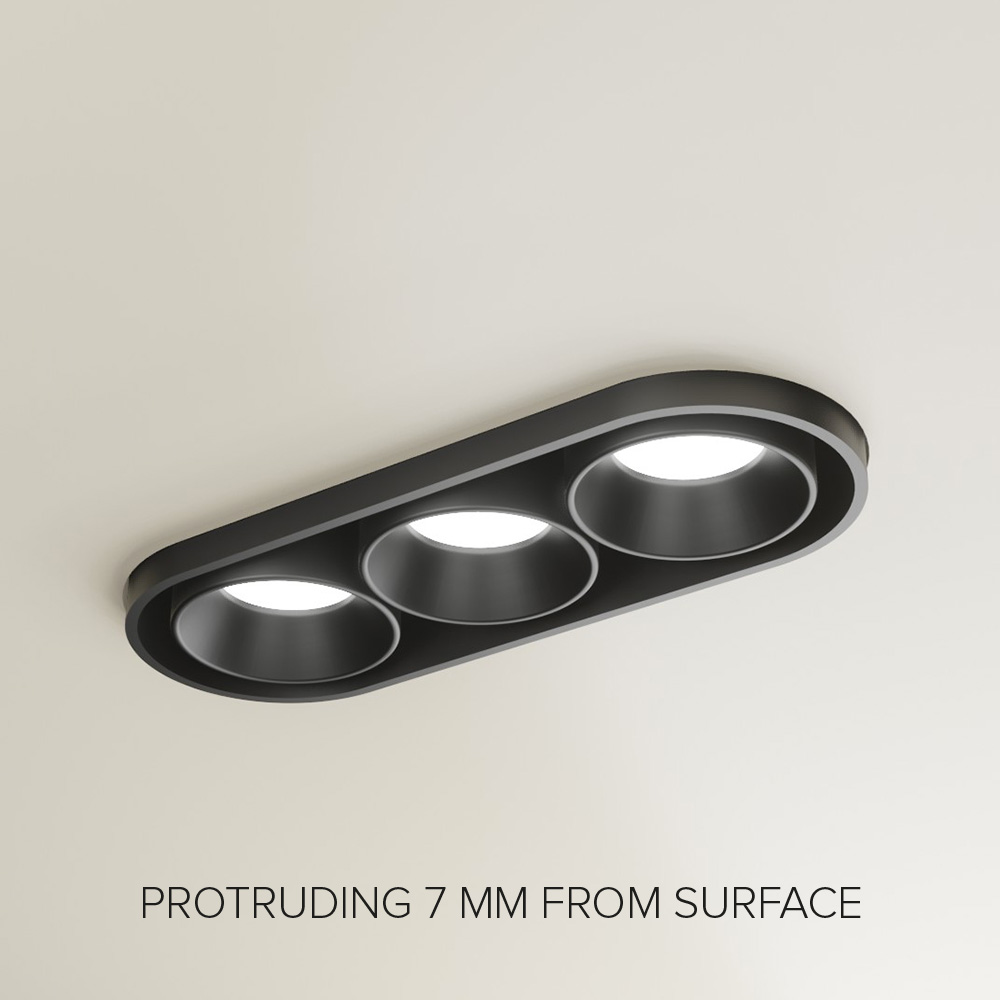

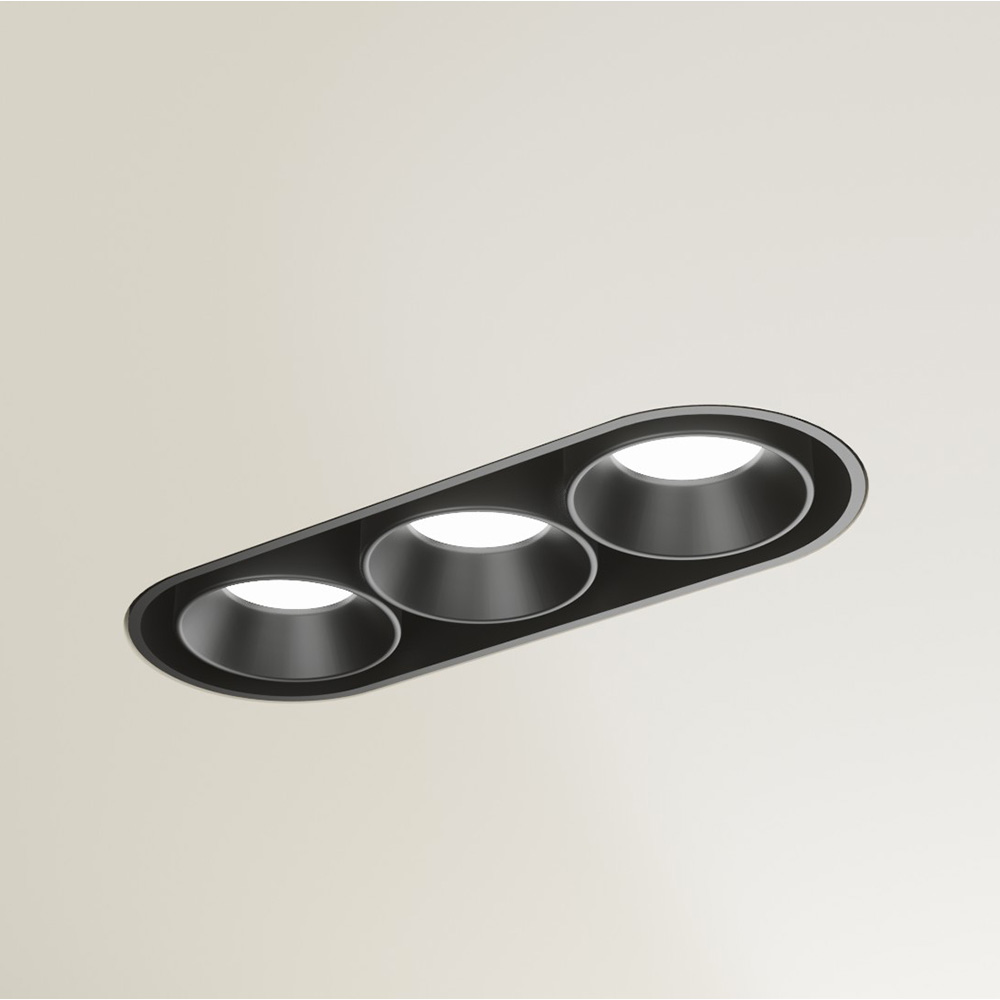

  • When mounting on wood, stone or composite materials, the fixture can be flush with the ceiling or protruding up to 7 mm
  • Two beam spreads: symmetrical 15°, 34°, 40° or asymmetrical (25° and wallwasher)

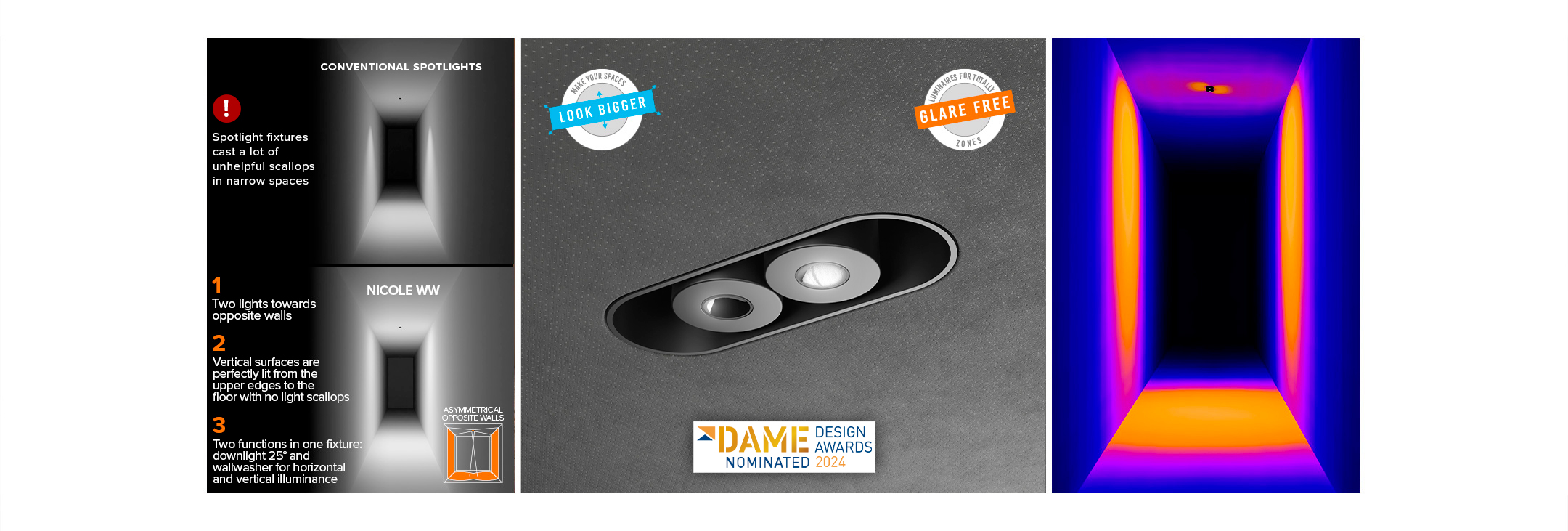

  • The asymmetrical beam is ideal for corridors, which require both walls to be illuminated to give depth and improve the perception of space. Nicole achieves a perfectly homogeneous light distribution on the floor and a wallwasher effect on both vertical surfaces at the same time. The walls are perfectly illuminated from the upper edges, with no visible light scallops, giving the perception that the space is larger and more comfortable
  • Two options for the asymmetrical beam: two lights towards the same wall or two lights towards opposite walls
  • 2700K CRI93, 3000K CRI93 or 4000K CRI93 static white options or red light for navigation
  • Wattage: 6W/9W at 24V DC (3W per light aperture). Min / max operative voltage: 20V – 30V
  • Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • IP30, IP40 or IP65
