Inserto Mini CL

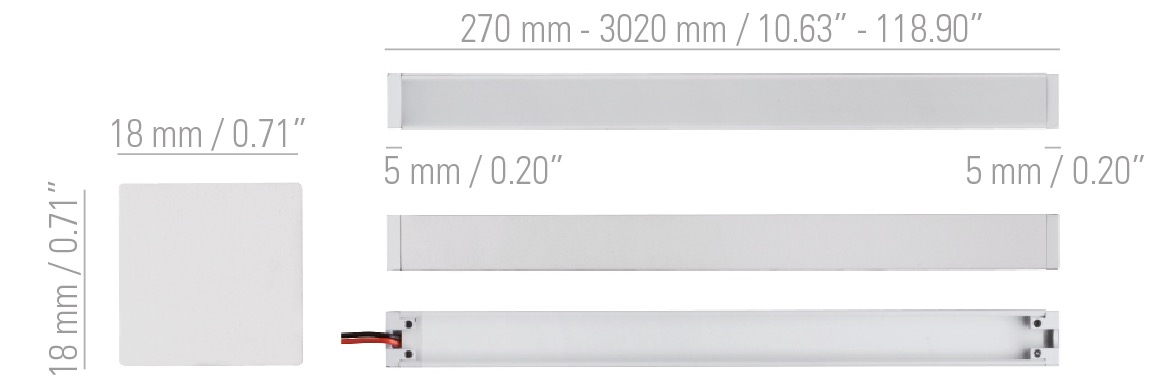

Linear compact luminaire with a width of only 0,71″ and with an essential and minimal design and an even light distribution across the entire surface

  • Available in increments 9.8″: from 10.6” to 118.9”, custom made lengths available on request
  • Concealed wiring and concealed clips mounting for clean design
  • Lamp wattage 20W per meter at 24V DC, RGB 12W at 24V DC. Features an board DC driver that ensures overcurrent protection and protection against wrong connections
  • Available with colour temperature 2700K CRI93, 3000K CRI93, 4000K CRI93 (INSERTO MINI CL-E: CRI90) and RGB
  • 2 wires dimming 1-10V. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Suitable for dry location
  • Standards: UL 2108, CSA C22.2
