INSERTO MINI DO

Compact linear marker light with flush diffuser for seamless in-ground installation

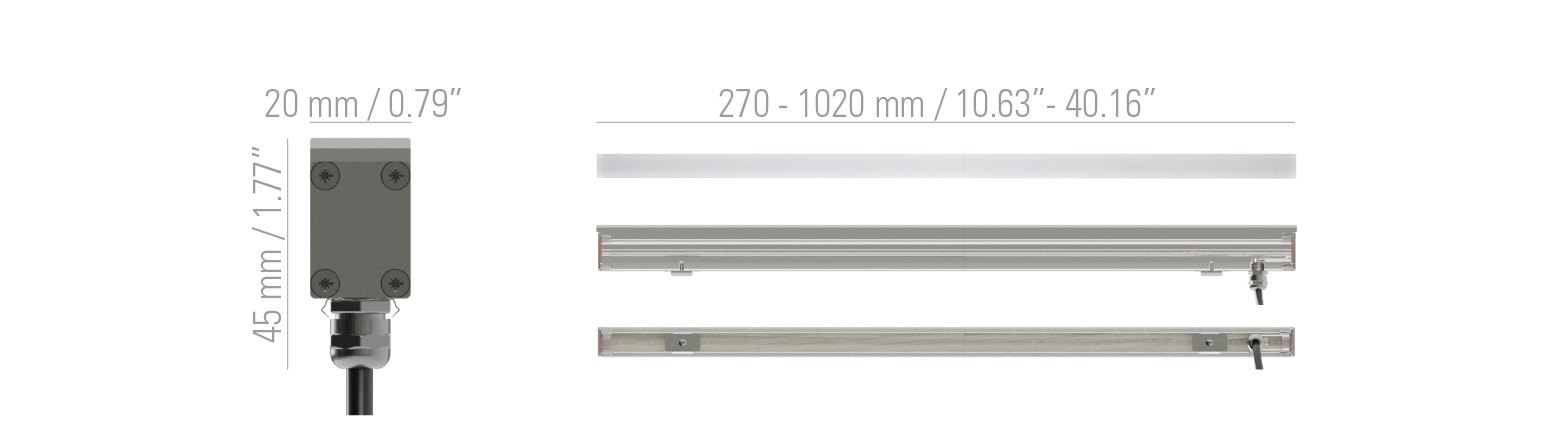

  • Available in increments of 9.8”: from 10.6” to 79.5” mm
  • Drive over load of 4000 lbs, IK08
  • The surface appears evenly lit thanks to the thickness of the diffuser and the distance from the LEDs
  • Thanks to its construction technology and stainless-steel housing it can be utilised in the most challenging exterior environments
  • Built in protection from water infiltration and moisture. Suitable for wet location
  • Available in colour temperatures of 2700K CRI93, 3000K CRI93, 4000K CRI93
  • Lamp wattage: from 3W to 12W at 24V DC
  • Unpolarised electronic system, safe wiring.
  • Two wires dimming: 1-10V, DALI. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Standards: UL 2108, CSA C22.2
