INSIDE 40 R

Glare free trimless downlight with symmetrical or asymmetrical reflector for indoor and outdoor use

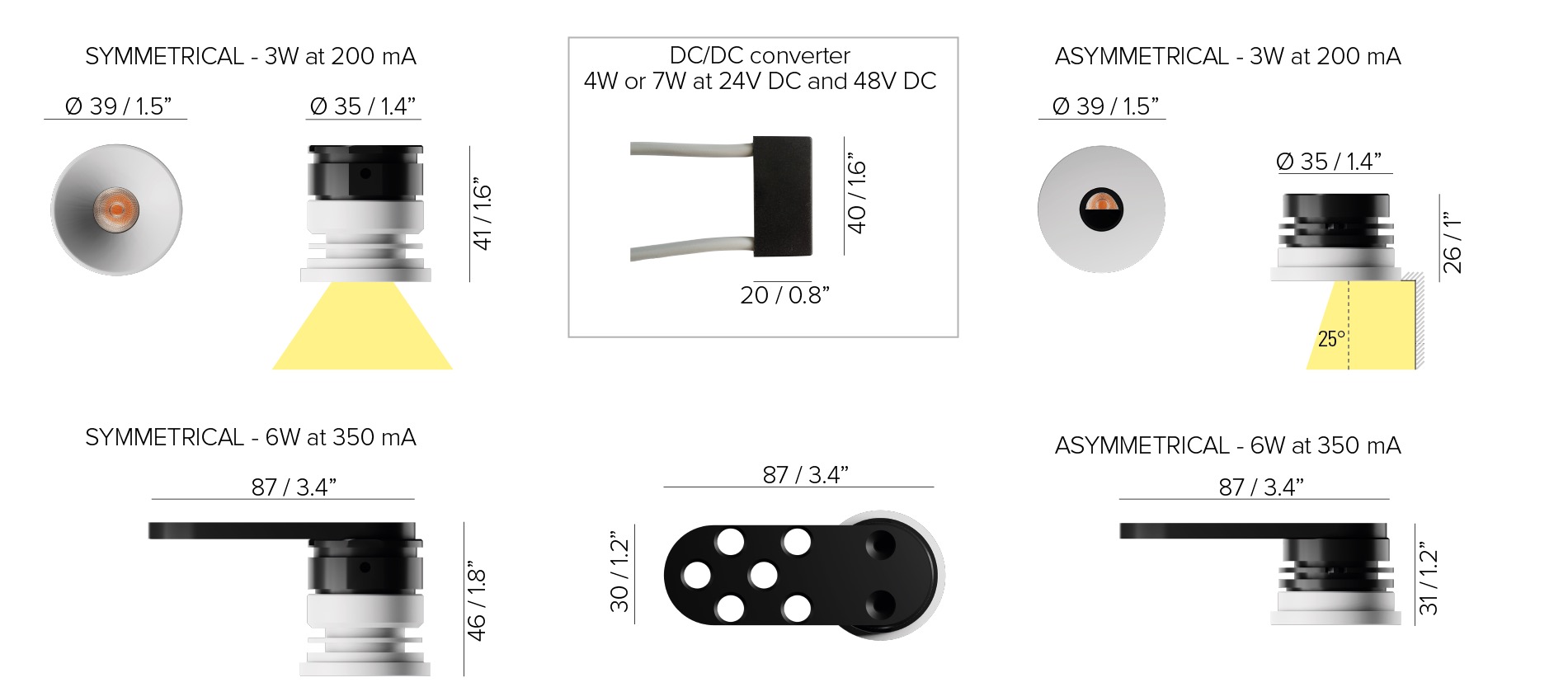

  • Diameter 1.5″, height 1.6″ / 1.8″
  • The light aperture has a diameter of only 0.5″
  • Mounting in plasterboard using mounting frame to be installed from below the ceiling or mounting in wood or composite materials using mounting frame to be installed from above the ceiling
  • Thanks to the design of the reflector, the luminaire is totally glare free
  • Available in two models: symmetrical reflector 16°/ 36°/ 55° or asymmetrical reflector (wallwasher + 25°)
  • The asymmetrical model delivers 25° on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
  • Available with color temperatures of 2700K CRI93, 3000K CRI93 or 4000K CRI93
  • Wattage: 3W at 200mA or 6W at 350mA
  • Dimming options – push button, potentiometer, 0-10V, DALI, DMX, KNX – depend on the power supply and additional control units to be separately ordered as accessory
  • Asymmetrical: suitable for dry location. Symmetrical: suitable for dry, damp and wet location
  • Standards: UL 2108, CSA C22.2
