Lappen

In-grade grazing luminaire or wall mounted steplight with one light sector 90°, two light sectors 90°, one light sector 180°

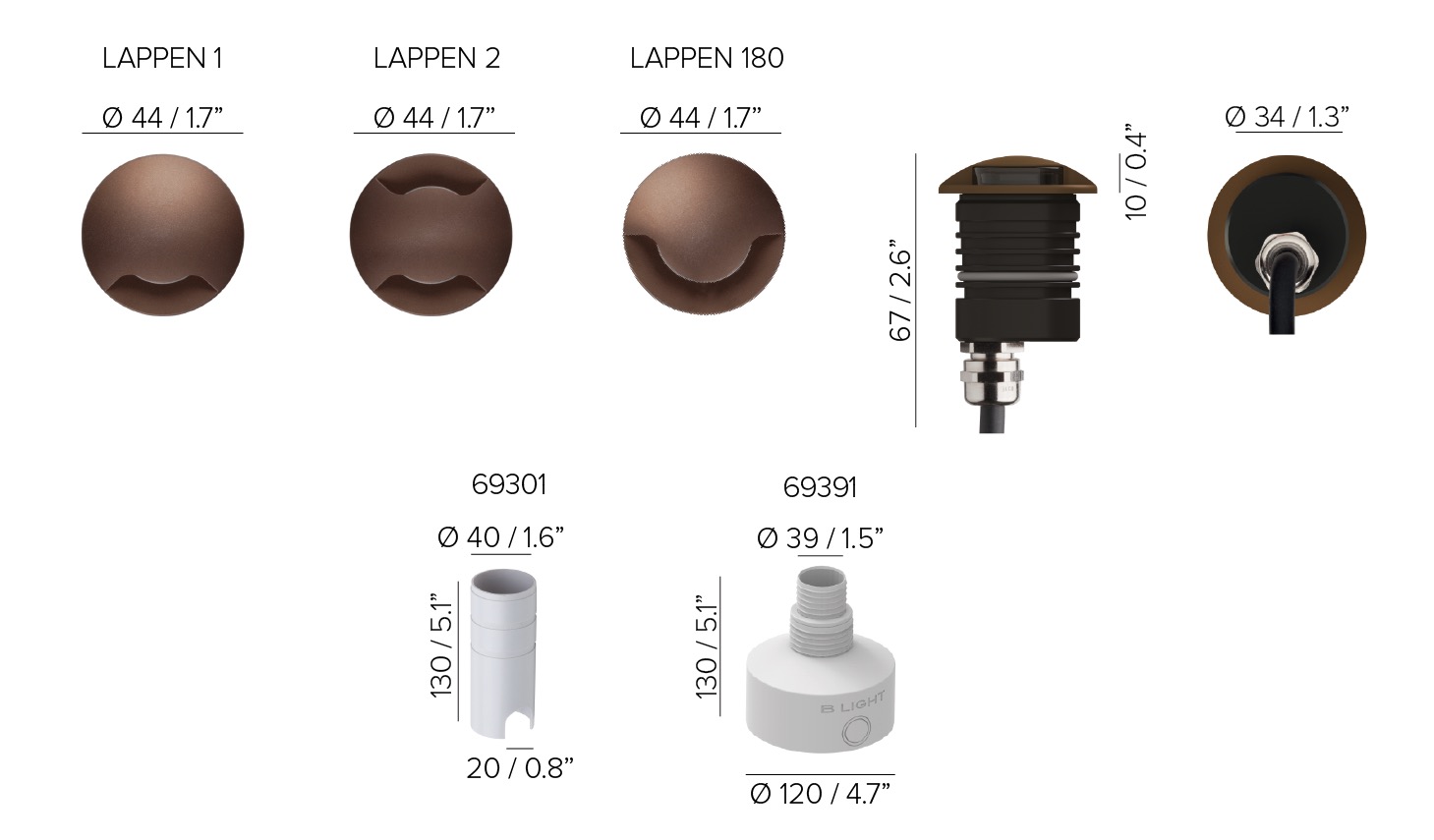

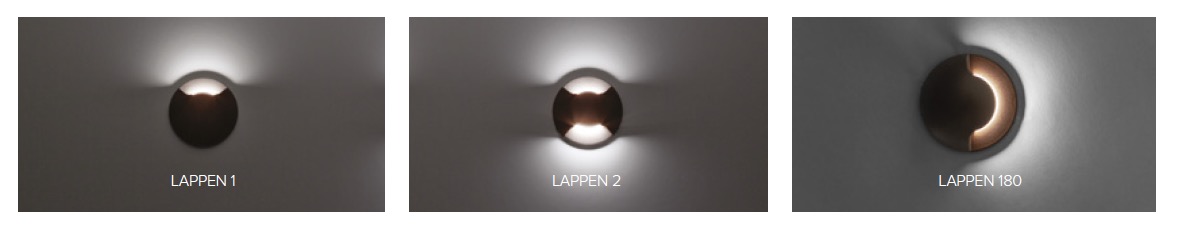

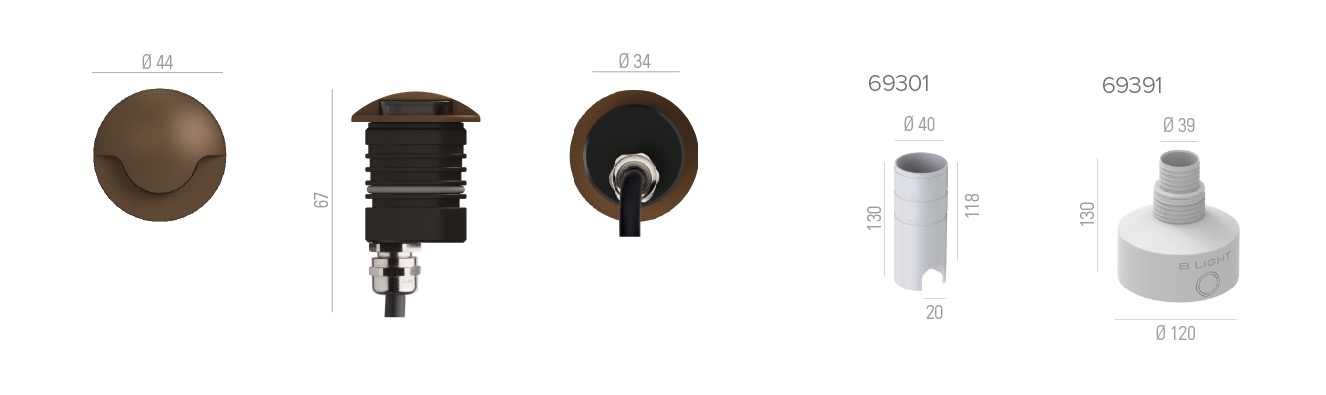

  • Available in three versions: LAPPEN 1 – one light sector 90°, LAPPEN 2 – two light sectors 90°, LAPPEN 180 – one light sector 180°
  • Diameter: 1.7”
  • Depth: 2.6”
  • Required depth: 3.2” on plasterboard, 5.1” on concrete
  • Built-in protection from water infiltration and moisture. Suitable for wet location
  • Available in colour temperatures of 2200K CRI80, 2700K CRI93 and 3000K CRI93
  • Wattage: 3W at 24V DC
  • Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to 140°F
  • Two wires dimming 1-10V. Other dimming options: push button, potentiometer, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Standards: UL 2108, CSA C22.2

Download text
