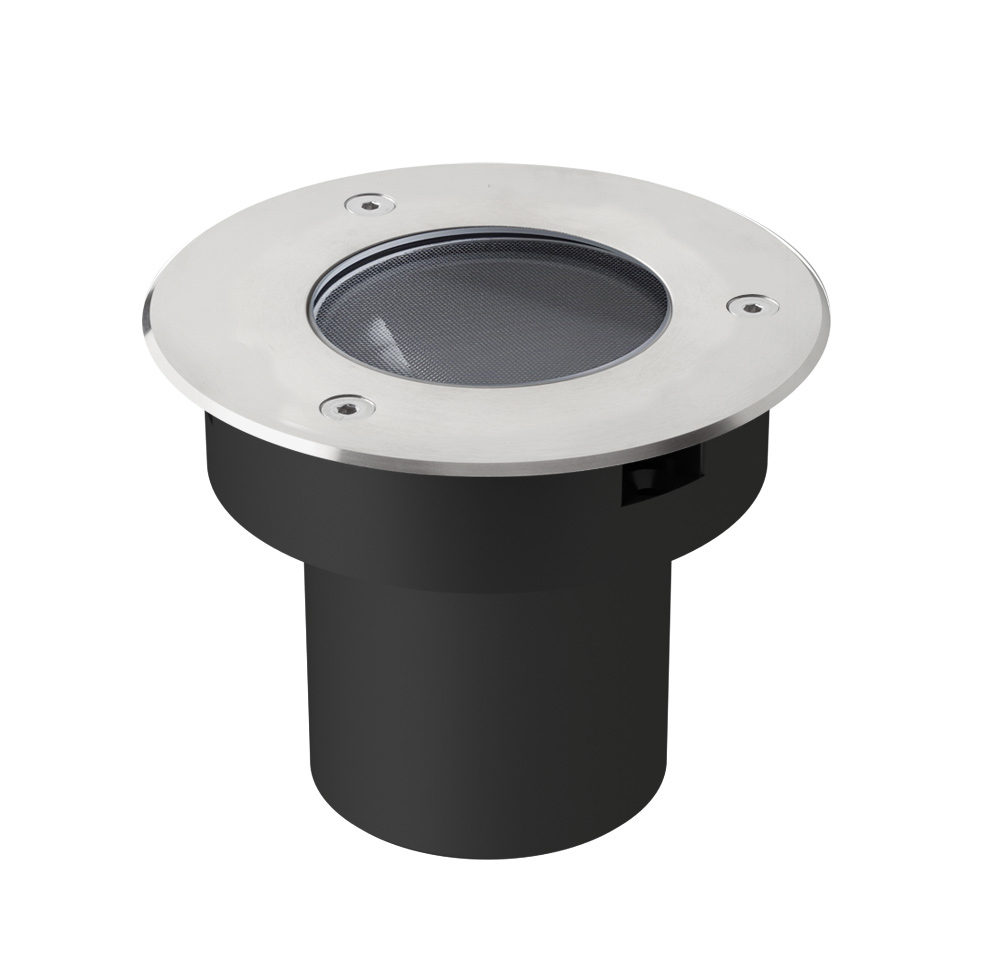

MEROPE 100 WW

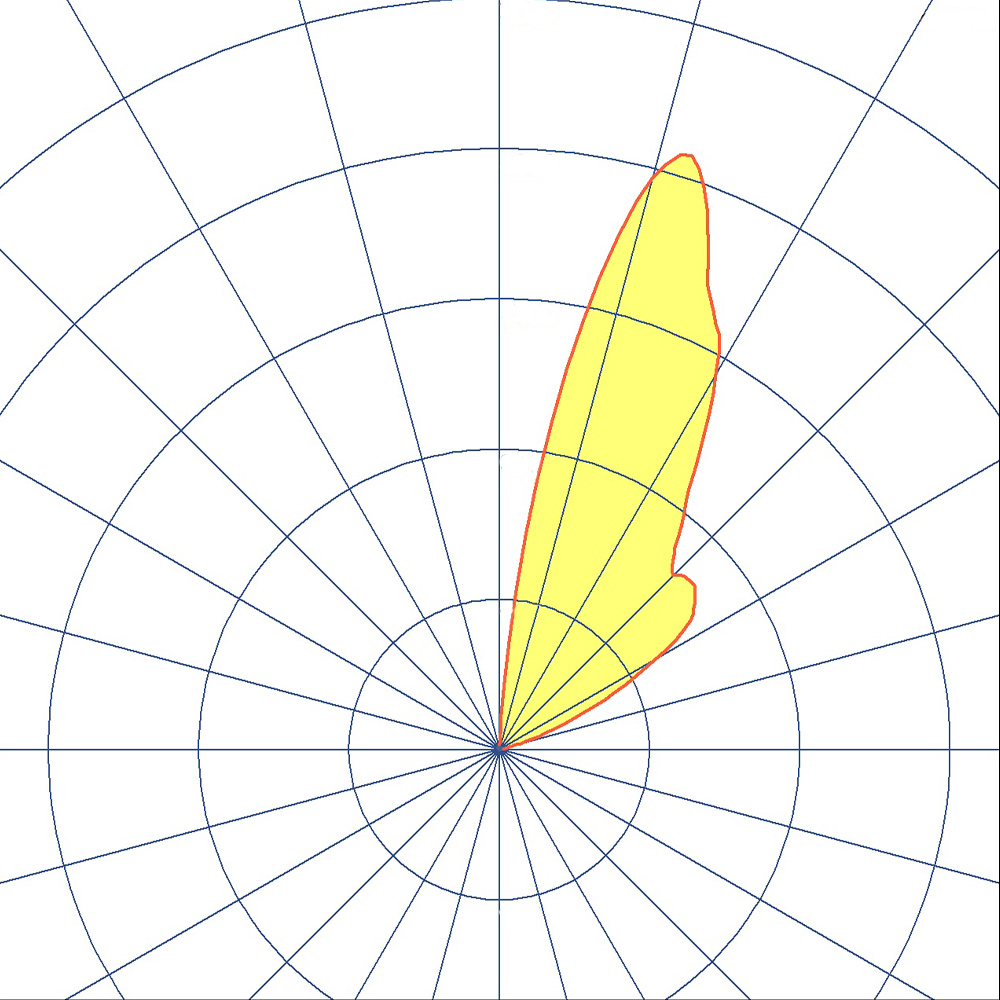

Drive over glare free wallwasher, delivering asymmetric light distribution

• Drive over load of 7,000 lbs

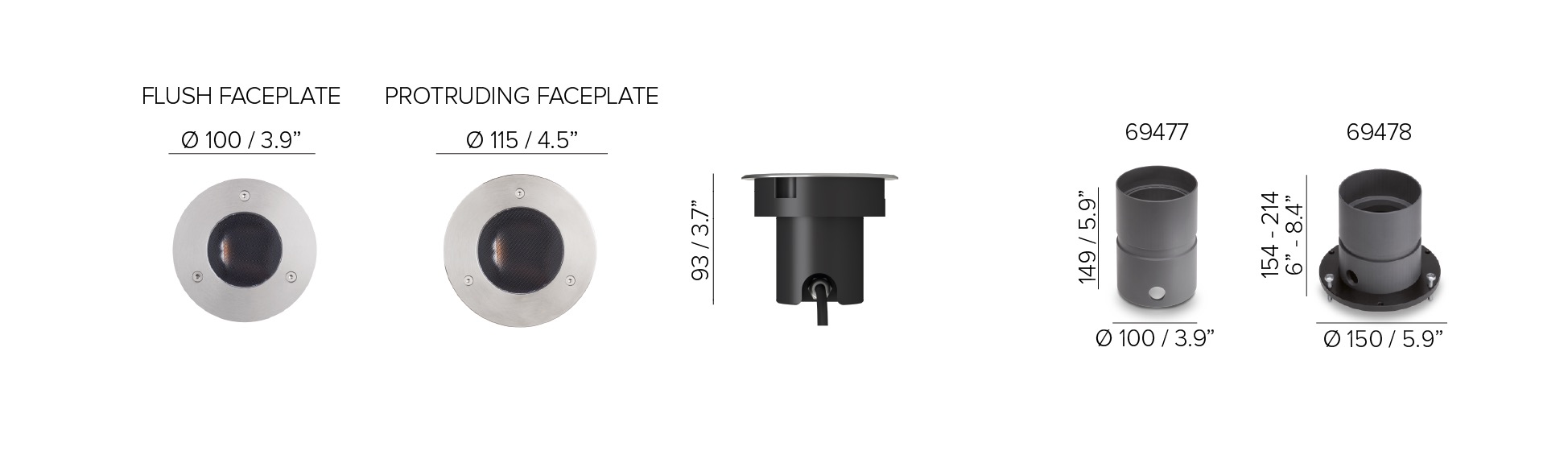

• Diameter: flush faceplate: 3.9″, protruding faceplate: 4.5″

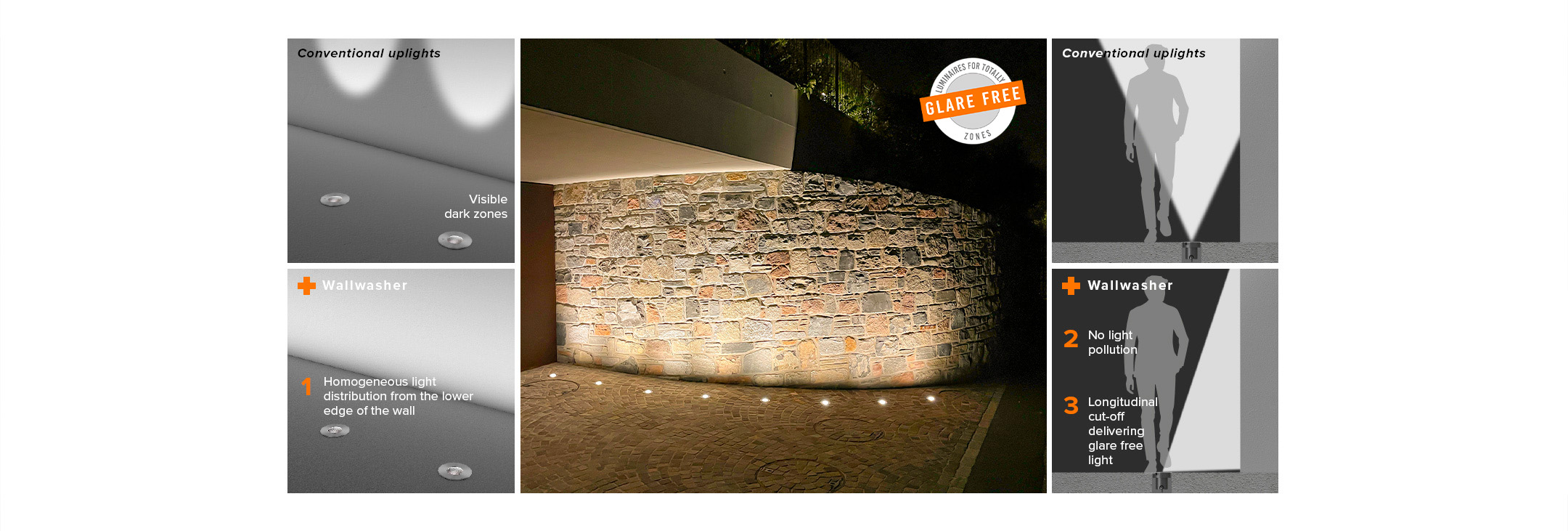

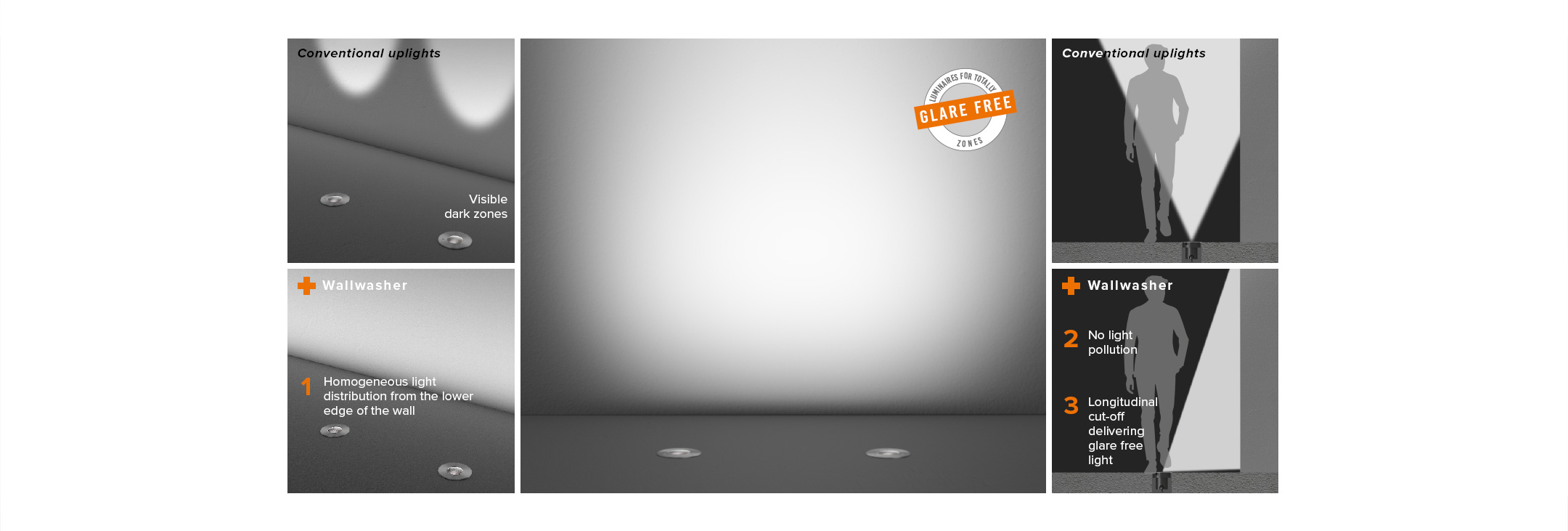

• Thanks to the design of the reflector, the fixture is glare free offering a longitudinal cut-off and delivering homogeneous light distribution on the wall

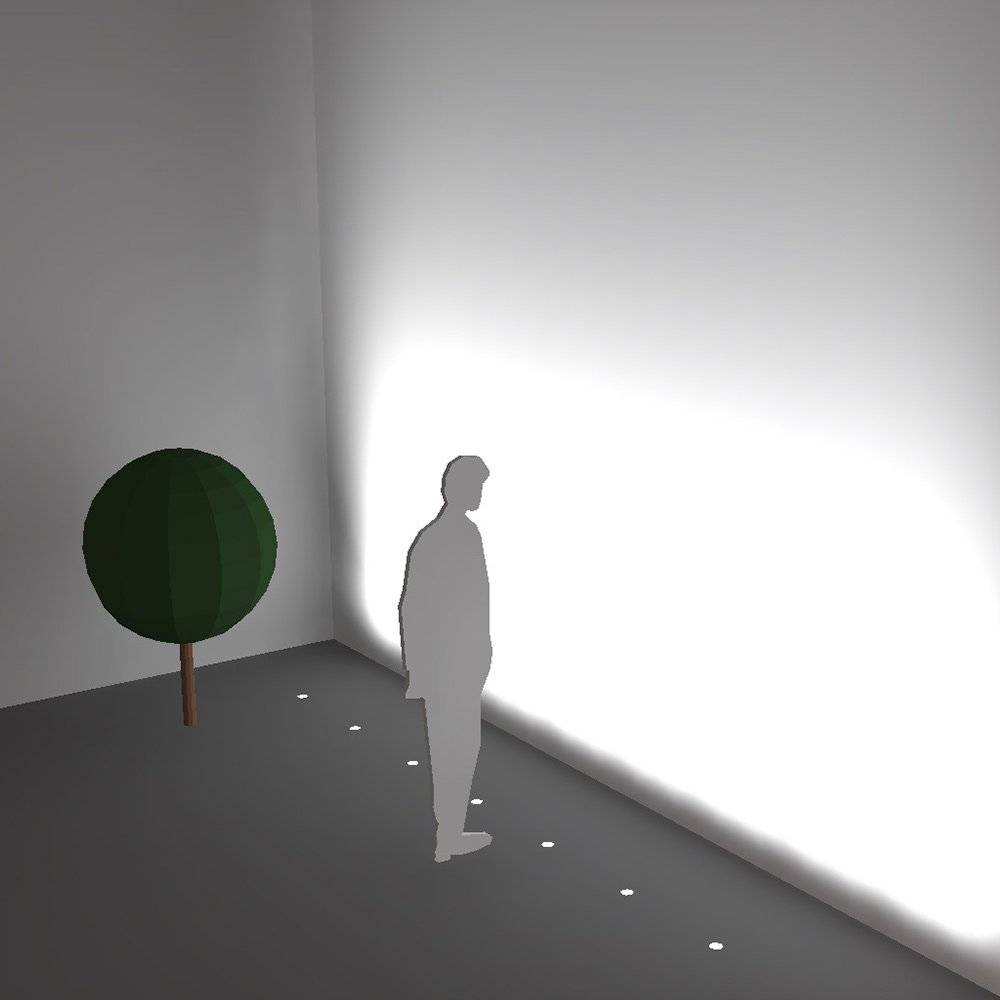

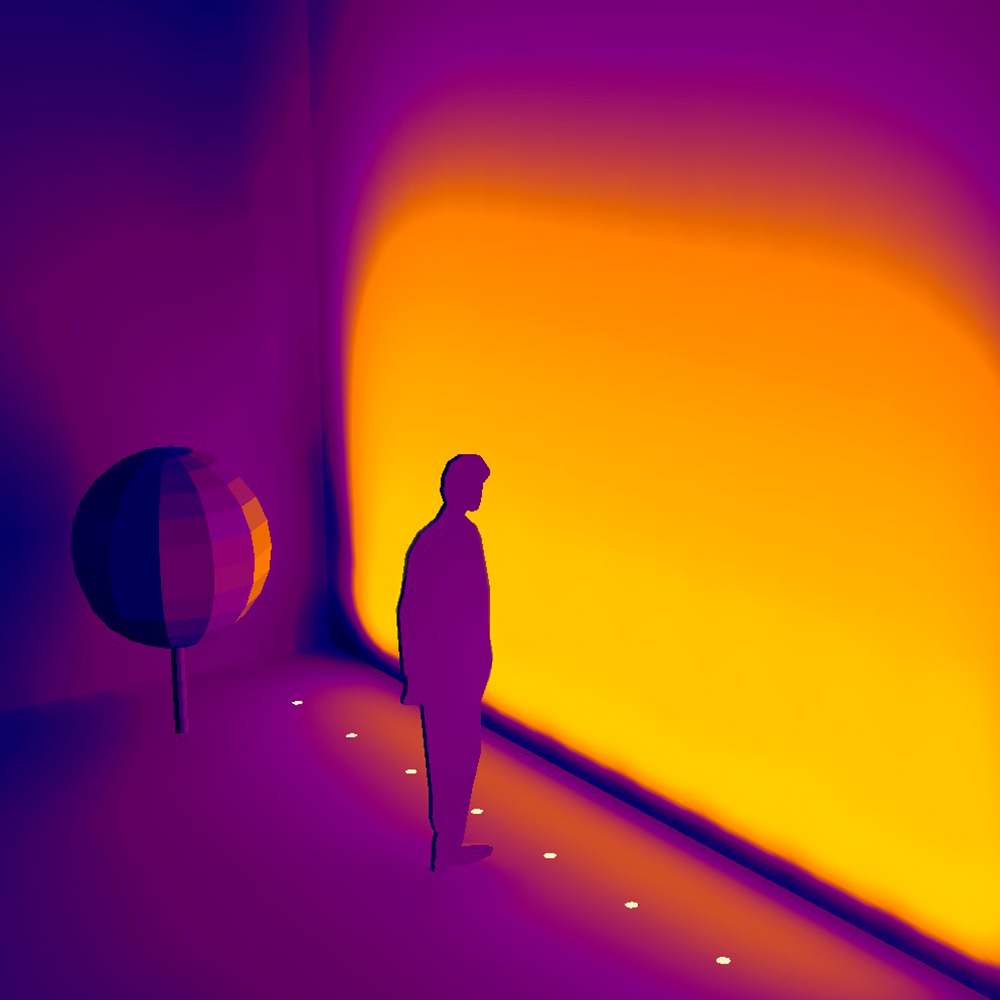

• The wall wash is achieved from the lower edge of the wall to be illuminated with no visible dark zones
• Because the light is precisely focused towards the surface to be illuminated, light pollution is virtually eliminated
• Available with colour temperature of 2200K CRI80, 2700K CRI93, 3000K CRI93 or 4000KCRI93
• Wattage: 8W at 24V DC
• Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to 140°F
• Two wires dimming: 1-10V. Other dimming options: push button, potentiometer, remote control, DMX, KNX. Dimming options depend on power supply and additional control units to be separately ordered as accessories
• Built in protection from water infiltration and moisture. To guarantee a tightness over time, the fixture is installed without opening the optical compartment
• Standards: UL 2108, CSA C22.2
